Rebound Hammer Test: Ensuring Concrete Strength with Sigma Test and Research Centre

Concrete is the backbone of modern infrastructure. From towering skyscrapers to bridges and residential complexes, its strength and durability determine the safety and longevity of structures. But how do engineers and quality control professionals assess concrete strength without damaging the structure? One of the most widely used non-destructive testing (NDT) methods is the Rebound Hammer Test.

At Sigma Test and Research Centre, we have emerged as one of the leading laboratories in the field of testing and calibration services. Our expertise ensures that every test we conduct meets international standards, providing reliable results that empower builders, architects, and engineers to make informed decisions.

What is the Rebound Hammer Test?

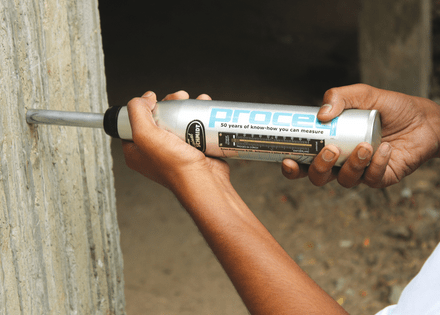

The Rebound Hammer Test, also known as the Schmidt Hammer Test, is a non-destructive method used to assess the compressive strength of concrete. It involves striking the concrete surface with a spring-loaded hammer and measuring the rebound of the hammer mass. The rebound value, known as the Rebound Number, correlates with the concrete’s strength
This test is simple, quick, and cost-effective, making it a preferred choice for on-site concrete strength evaluation.

Working Principle

The principle behind the rebound hammer test is straightforward:
• A spring-controlled hammer impacts the concrete surface.
• The extent of rebound depends on the hardness of the concrete.
• Harder concrete produces a higher rebound value, while softer concrete yields a lower value.
• These rebound numbers are then correlated with compressive strength using calibration charts provided by the hammer manufacturer

Procedure of the Rebound Hammer Test
At Sigma Test and Research Centre, we follow a meticulous procedure to ensure accuracy:

1. Surface Preparation
   The concrete surface is cleaned and smoothened. Loose particles or coatings are removed to avoid misleading results.
2. Positioning the Hammer
   The rebound hammer is held perpendicular to the test surface. Tests can be conducted on vertical, horizontal, or overhead surfaces.
3. Impact and Measurement
   The hammer plunger is pressed against the surface until it releases and impacts. The rebound value is read directly from the scale.
4. Multiple Readings
   At least 10–12 readings are taken in a test area to ensure consistency. Outliers are discarded.
5. Result Interpretation
   The average rebound number is compared with standard charts to estimate compressive strength

Advantages of the Rebound Hammer Test
• Non-destructive: No damage to the structure.
• Quick and portable: Ideal for on-site testing.
• Cost-effective: Requires minimal equipment and manpower.
• Immediate results: Provides instant strength estimation.
• Versatile: Can be used on slabs, beams, columns, and walls

Limitations of the Test

While useful, the rebound hammer test has certain limitations:
• Surface sensitivity: Results depend on surface hardness, which may not represent internal strength.
• Moisture content: Wet concrete may give lower rebound values.
• Calibration dependency: Accuracy relies on proper calibration of the hammer.
• Not a standalone test: Best used in combination with other methods like Ultrasonic Pulse Velocity (UPV) or core sampling

Applications in Construction

The rebound hammer test is widely used in:
• Quality control during construction
• Assessment of existing structures
• Comparative analysis of different concrete batches
• Identifying weak zones in large structures
• Preliminary investigation before detailed testing civilengineerdk.com

Sigma Test and Research Centre: Your Trusted Partner
At Sigma Test and Research Centre, we understand the critical role of concrete strength in ensuring structural safety. Our laboratory is equipped with state-of-the-art rebound hammers and other advanced NDT tools. What sets us apart:

• Accredited expertise: We adhere to international standards such as IS 13311 (Part 2): 1992 for rebound hammer testing.
• Experienced professionals: Our team of engineers and technicians ensures precise execution and interpretation.
• Comprehensive services: We combine rebound hammer testing with other NDT methods for holistic analysis.
• Client-centric approach: Whether you are a builder, architect, or government agency, we tailor our services to your needs.

Case Study: Ensuring Safety in a Commercial Complex
Recently, Sigma Test and Research Centre was engaged to evaluate the concrete strength of a large commercial complex in Delhi NCR. Using the rebound hammer test, we identified areas with lower-than-expected strength. Our findings allowed the client to take corrective measures, ensuring the safety and durability of the structure. This case highlights how timely testing can prevent costly repairs and safeguard lives.

Why Choose Sigma Test and Research Centre?
• Reliability: Trusted by leading construction companies across India.
• Accuracy: Advanced calibration ensures dependable results.
• Comprehensive solutions: From rebound hammer tests to chemical analysis, we cover all aspects of material testing.
• Commitment to quality: Our mission is to uphold safety and excellence in every project.

Conclusion
The Rebound Hammer Test is a vital tool in modern construction, offering a quick and non-destructive way to assess concrete strength. However, its true value lies in the hands of experts who can interpret results accurately and combine them with other testing methods.

At Sigma Test and Research Centre, we pride ourselves on being at the forefront of testing and calibration services. With our expertise, infrastructure, and commitment to quality, we ensure that every structure stands strong and safe for generations to come.
